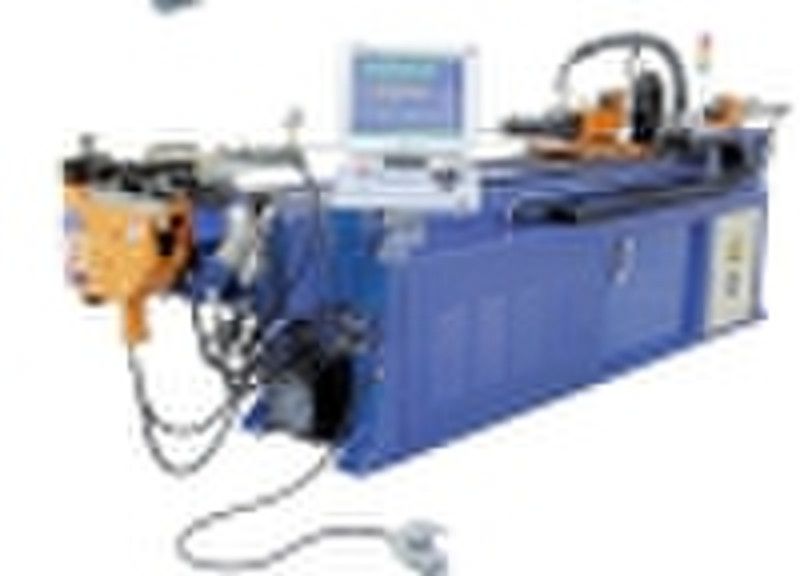

CNC Pipe Bending Machine

CNC pipe bending machine Technological parameters :Model DW38CNCHTSRMax pipe O.D.XW.T. mm Φ 38*2Range of bending radius mm 25-170Max bend angle deg 190ºMax length of over madrel mm 2100Bending accuracy +/-Deg 0.1 ºBending speed /sec 52ºFeeding accuracy +/-Deg 0.1 ºFeeding speed mm/sec 942Rotating accuracy +/-Deg 0.1ºRotating speed /sec 140ºTotal power kw 5.4Hydraulic pressure bar 120Measurmentmm 3900*1000*1500Weight kg 2000Feature :1.DW: Single-head pipe bending machine; 38: Max pipe diameter;CNC: Full-automated computer controlH: Hydraulic T: Touching control SR: Single-layer die2.Auto recognition of machine/work piece dynamic specification-quick and good processing 3.Slow core drawing ,trolley co-pushimprove appearance of angle4.Diagrammatiocal programming system:modify the stereo pipe image on the screen and get the processing programeasy,quickand accurate programming5.Single-step adjustingprecise observation the deformation of pipe while die testing6.Auto die diagram drawinggreat help in research new products7.Over-all inspection :hydraulic/electrical/driving system ,phase absence in motor/reversal ,voltage,temperature,oil pressure .Auto trouble diagnosis8.Password ,key,working hours ,scale recordings help in production management
