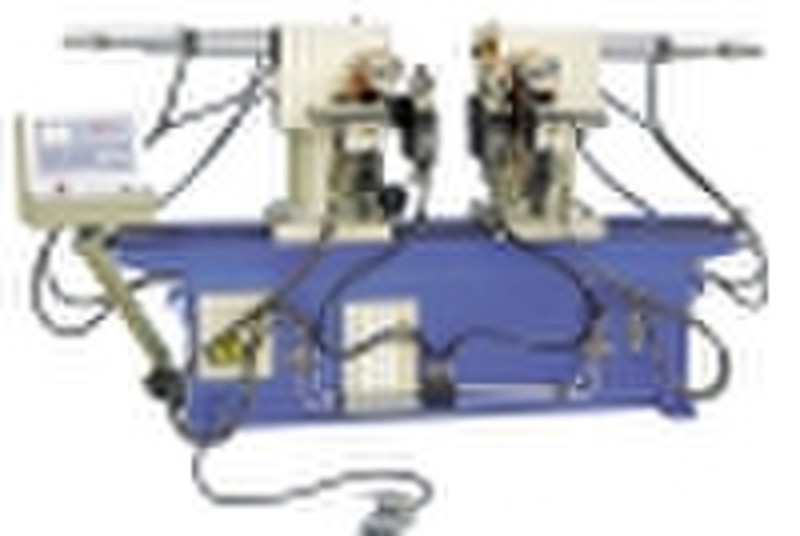

Double-Head Hydraulic Pipe Bending Machine

Double-Head HydraulicPipeBending Machine Technological parameters :Model SW40AMax pipe O.D.XW.T. mm Φ 40*2Range of bending radius mm 38-200Max bend angle deg 185ºDistance of two heads mm 200-1700Bending accuracy +/-Deg 0.3 ºBending speed /sec 50ºNumbers of bending each time Φ13*4pcs Φ16*3pcs Φ25*2pcsTotal power kw 5.5Hydraulic pressure bar 120Measurment mm 2700*900*1450Weight kg 1500Feature :1. SW: Double-head pipe bending machine; 40: max pipe diameter; A: Rotary head-section2.Manual and automatic pattern can be chosen freely 3.Controlled by micro-computer 4.Process steps showed in Chinese and English on the screen 5.Operated by man-machine conversation mode 6.The two heads of the machine can work separately or simultaneously 7.Many pipes can be processed at the same time 8.The cooling system makes the temperature of oil constant and the pressure smooth
