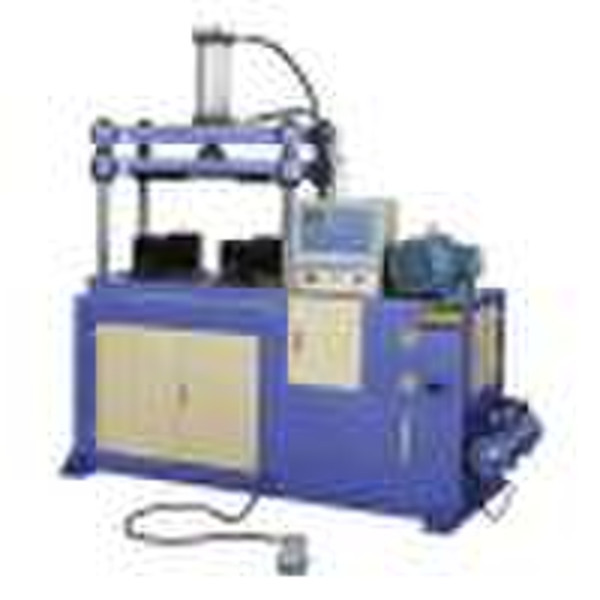

Press Bending Machine

Press bending machine Technological parameters :Model YW50Max pipe O.D.XW.T. mm Φ 50*2Max bend angle deg 165ºBending speed /sec 25ºHydraulic pressure bar 120Measurment mm 1800*850*1150Weight kg 685Feature :1) Principle: to turn the revolving die into the pressing die makes the driving bone more direct and the structure more refined 2) The vertical pressing die bending system expands the space of the bent pipe greatly 3) Unnecessary clamping in the process of pipe bending and the specially-designed liftout attachment make placing and taking more convenient and the cycle of bending pipe shorter, and efficiency higher 4) Mainly fit for processing various materials for the pipes with big bending span or with many angles 5) Necessary supplement to the single-head and double-head hydraulic pipe-bending machine
