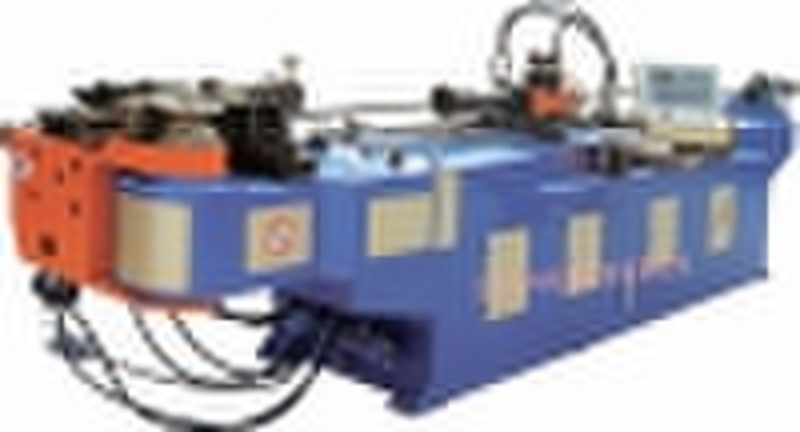

Single-head Hydraulic 3D Pipe Bending Machine

Single-head hydraulic 3D pipe bending machine Technological parameters :Model DW80NCBLZ(bending on the left)Max pipe O.D.XW.T. mm Φ 80*3Range of bending radius mm 50-350Max bend angle deg 190ºMax length of over madrel mm 3600Bending accuracy +/-Deg 0.3Bending speed /sec 44ºRotating accuracy +/-Deg 0.15ºRotating speed /sec 70ºTotal power kw 11Hydraulic pressure bar 130Measurment mm 5900*1100*1300Weight kg 3500Feature :1.DW: single-head pipe bending machine; 80: max pipe diameter; NC: numerical control B: with co-push deviceL: mechanically fixing length by handsZ: bending on the left2.Auto-choose and exchange manual/ auto mode, equipped with micro-computer control, Chinese/English display and man machine interactive operation3.Auto-storing counting number and power-off for ever. Auto-change mandrel and anti-wrinkle device, which make the product more perfect4.Equipped with oil-operated clamping pipe, electromagnetic iron locking angl, mechanically fixing length and 3D auto-angle rotating are all controlled by encoder with ±0.1 degree precision5.Equipped with cooling system to make temperature invariable and pressure even. The product has strong bending capacity6.Adopt self-lubricate bearing and linker with no damage to machine table
