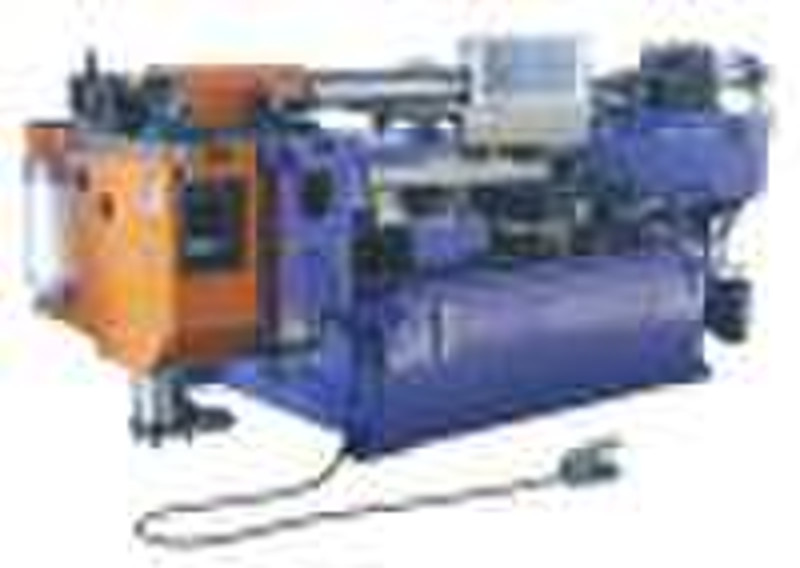

Single-head hydraulic pipe bending machine

Single-head hydraulic pipe bending machine Technological parameters :Model DW89NCBMax pipe O.D.XW.T. mm Φ 89*6Range of bending radius mm 50-450Max bend angle deg 190ºMax length of over madrel mm 3200Bending accuracy +/-Deg 0.3Bending speed /sec 10ºTotal power kw 15Hydraulic pressure bar 120Measurment mm 4460*1300*1300Weight kg 4400Feature :1) Manual and automatic pattern can be chosen freely 2) Controlled by NC 3) Process steps showed in Chinese and English on the screen 4) Operated by man-machine conversation mode 5) With automatic counter 6) Can automatically take out the core 7) With automatic anti-crease device 8) Many angles can be set and controlled by many groups of procedure 9) The cooling system makes the temperature of oil constant and the pressure smooth
